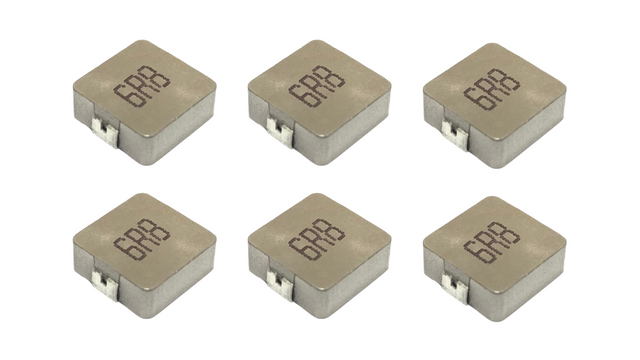

1MT Series Molded Power Inductor
1MT Features
- Molded Metal Construction with ultra low DCR
- Magnetically shielded
- Ultra High current capability (~110A)
- No acoustic noise and no leakage field
- Operating Temperature range from -40°C to +125°C (Including Self-heating)
1MT Series Molded Power Inductor
| Part Number | Inductance | Tolerance | DCR Typ. | DCR Max. | Irms | Isat |
|---|---|---|---|---|---|---|
| 1MT0420-R10MF | 0.10μH | ±20% | 0.005Ω | 0.005Ω | 11.0A | 30.0A |
| 1MT0420-R22MF | 0.22μH | ±20% | 0.007Ω | 0.008Ω | 9.0A | 17.0A |
| 1MT0420-R47MF | 0.47μH | ±20% | 0.014Ω | 0.016Ω | 6.0A | 11.5A |
| 1MT0420-1R0MF | 1.00μH | ±20% | 0.032Ω | 0.036Ω | 3.8A | 8.5A |
| 1MT0420-1R5MF | 1.50μH | ±20% | 0.038Ω | 0.036Ω | 3.5A | 6.0A |
| 1MT0420-2R2MF | 2.20μH | ±20% | 0.052Ω | 0.058Ω | 3.0A | 5.0A |
| 1MT0420-3R3MF | 3.30μH | ±20% | 0.074Ω | 0.087Ω | 2.5A | 4.0A |
| 1MT0420-4R7MF | 4.70μH | ±20% | 0.095Ω | 0.105Ω | 1.7A | 1.8A |
| 1MT0420-6R8MF | 6.80μH | ±20% | 0.140Ω | 0.160Ω | 2.0A | 2.1A |
| 1MT0420-100MF | 10.00μH | ±20% | 0.240Ω | 0.280Ω | 1.6A | 2.0A |
| 1MT0420-220MF | 22.00μH | ±20% | 0.310Ω | 0.360Ω | 1.2A | 1.4A |
| 1MT0520-R10MF | 0.10μH | ±20% | 0.004Ω | 0.004Ω | 17.0A | 38.3A |
| 1MT0520-R22MF | 0.22μH | ±20% | 0.005Ω | 0.005Ω | 15.0A | 28.7A |
| 1MT0520-R33MF | 0.33μH | ±20% | 0.008Ω | 0.008Ω | 12.0A | 21.3A |
| 1MT0520-R47MF | 0.47μH | ±20% | 0.008Ω | 0.009Ω | 11.5A | 17.9A |
| 1MT0520-R68MF | 0.68μH | ±20% | 0.011Ω | 0.012Ω | 10.0A | 15.8A |
| 1MT0520-1R0MF | 1.00μH | ±20% | 0.019Ω | 0.020Ω | 7.0A | 13.7A |
| 1MT0520-2R2MF | 2.20μH | ±20% | 0.046Ω | 0.050Ω | 4.2A | 10.7A |
| 1MT0520-3R3MF | 3.30μH | ±20% | 0.079Ω | 0.086Ω | 3.3A | 7.3A |
| 1MT0520-4R7MF | 4.70μH | ±20% | 0.108Ω | 0.117Ω | 2.8A | 4.3A |
